3.4. Surface installation with wall box

Note

All measurements in millimeters.

The terminal can be surface mounted onto a flat surface in combination with a flush-mounted wall box. The metal wall bracket that is included with each terminal is attached to the wall box. The wall box and required mounting hardware are not included in the scope of supply and must be selected depending on the wall material.

Complete the following steps:

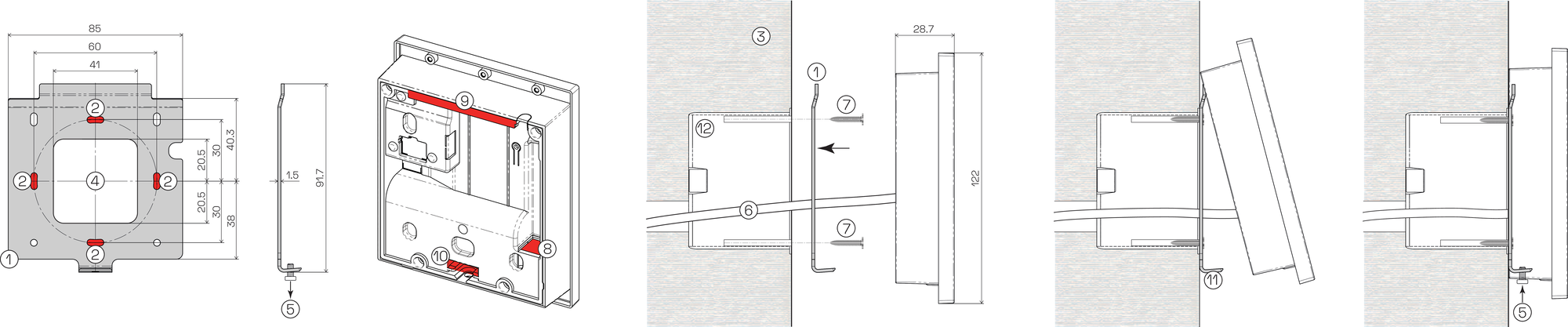

Figure 7. Installation with wall box
Installation with wall box

  1. Wall bracket

  2. Mounting hole for wall box

  3. Wall

  4. Opening for electrical cabling

  5. Fixing screw

  6. Electrical cabling

  7. Mounting screw

  8. RJ45 socket (Ethernet)

  9. Upper mounting part

  10. Lower mounting part

  11. Lower bracket part

  12. Flush-mounted wall box



  1. Install the wall box (12) according to the manufacturer's instructions.

    Note

    The recommended mounting height is 1.3 m to the middle of the device.

  2. The wall bracket (1) is delivered with the fixing screw (5) attached. Unscrew and remove the fixing screw from the wall bracket and retain for later.

  3. Feed the electrical cabling (6) through the opening (4) in the wall bracket.

  4. Attach the wall bracket (1) to the wall box (12) via two of the wall bracket mounting holes (2) and two screws (7). Ensure that the wall bracket is level and securely attached to the wall box.

    Note

    Use the correct type of screws suitable for the wall box. Do not use countersunk screws.

  5. Complete the required electrical connections (see Electrical connections for instructions). Plug the Ethernet cable into the RJ45 socket (8) on the rear side of the terminal and connect any other electrical cabling if required.

  6. Hook the upper mounting part (9) of the terminal onto the top of the wall bracket then carefully swing the terminal forward onto the wall bracket. Ensure that the lower bracket part (11) aligns with the lower mounting part (10) and that the cabling is not damaged during this process.

  7. To secure the terminal onto the wall bracket, tighten the fixing screw (5) from below.
