2.8. Device features and dimensions
Note
All measurements in millimeters.

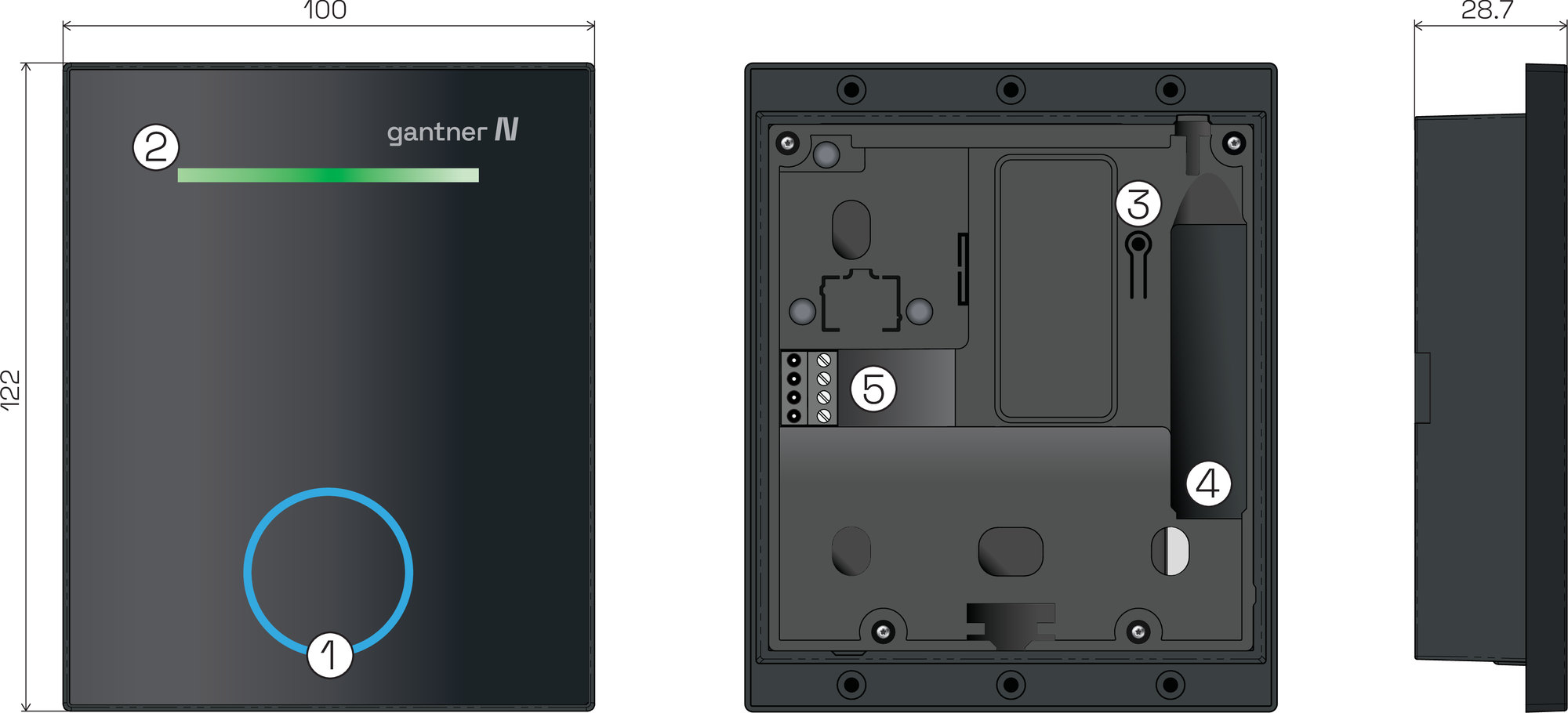

Figure 3. GT7.0500
RFID reader with LED ring
LED bar (status display)
RESET button
RJ45 connector (network)
Input/output connector

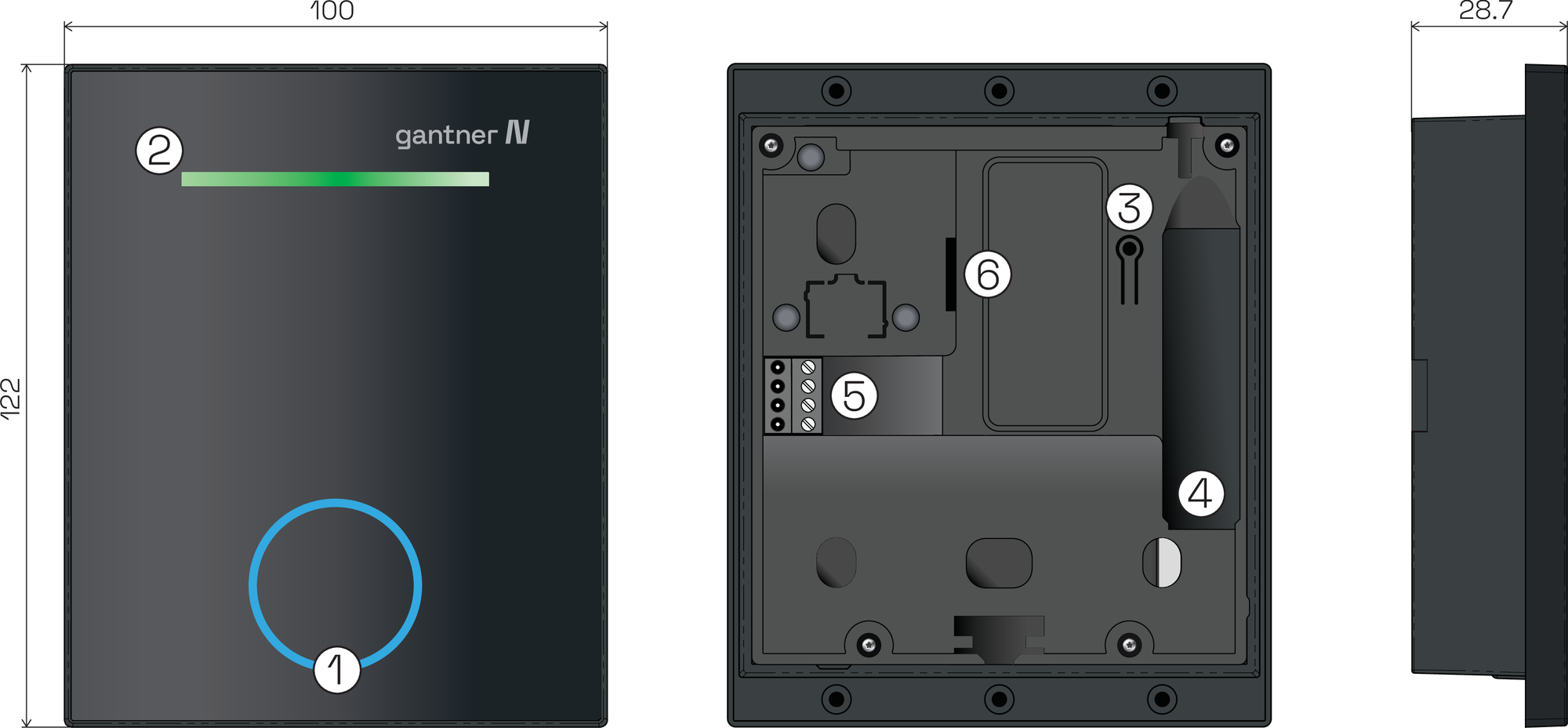

Figure 4. GT7.0510
RFID reader with LED ring
LED bar (status display)
RESET button
RJ45 connector (network)
Input/output connector
USB-C connector

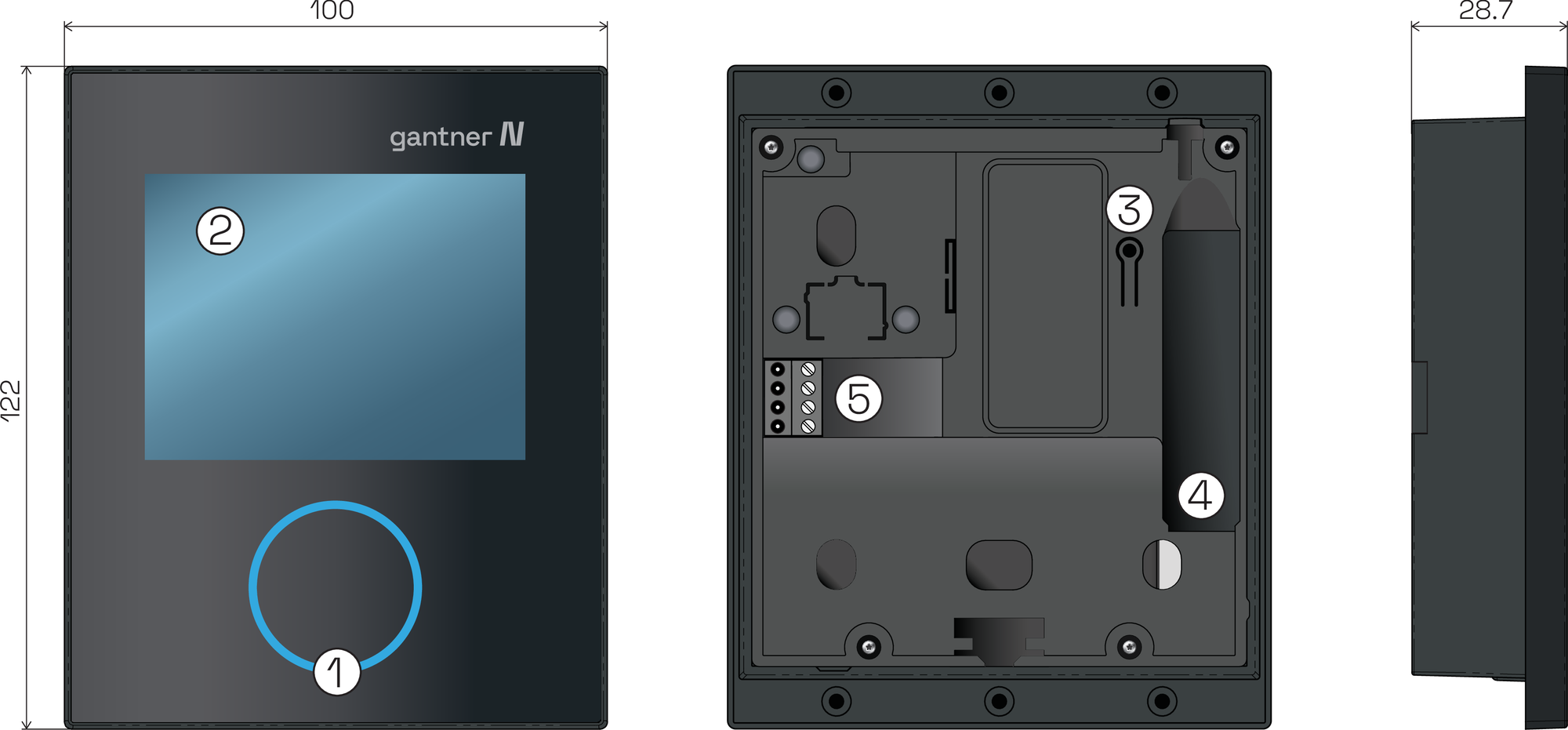

Figure 5. GT7.1300
RFID reader with LED ring
3.5 inch touchscreen display
RESET button
RJ45 connector (network)
Input/output connector
