GT7 Lite

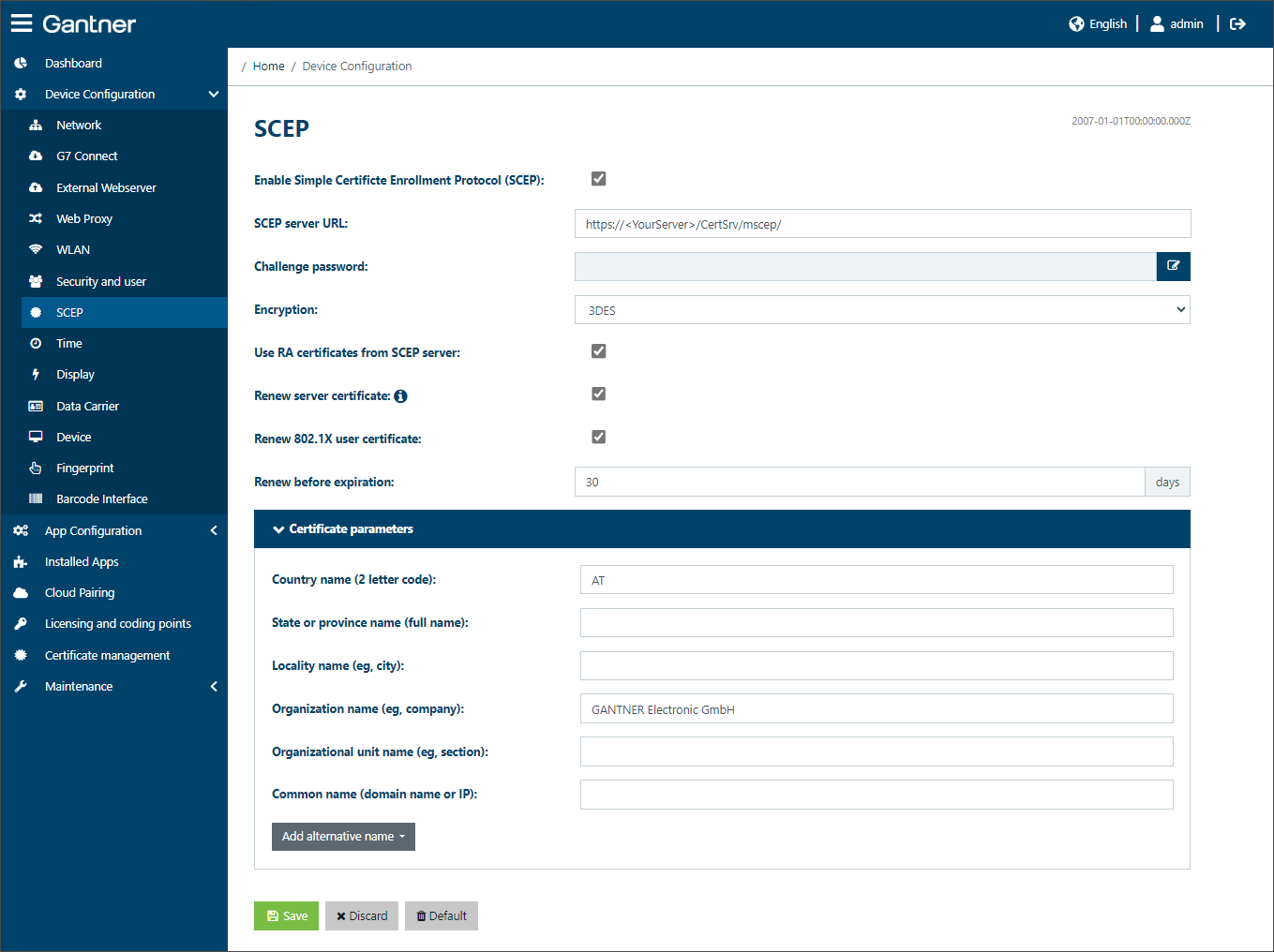

Enable Simple Certificate Enrollment Protocol (SCEP): Enable this option to use SCEP. Additional settings are then displayed below.

SCEP server URL: The address (URL) of the server where the certificates are located.

Challenge password: The password that is used to access the SCEP server.

Encryption: Select the desired encryption type (AES or 3DES).

Use RA certificates from SCEP server: With this option the certificates from the RA (registration authority) can be used. The RA is responsible for accepting requests for digital certificates and authenticating the entity making the request.

Renew server certificate / Renew 802.1X user certificate: These options are used for the communication between the device web interface and the management software. If an option is enabled, the device will restart after installing or renewing the certificate on the server or the device.

Renew before expiration: The number of days entered here defines when the certificate will be renewed (x days before expiration).

Certificate parameters: Enter the data for the certificate into this area. The data must correspond to the parameters that were used to generate the certificate.
