2.6. System overview
The following figure shows an example of how the GT7 Lite typically operates with the other components in the system.

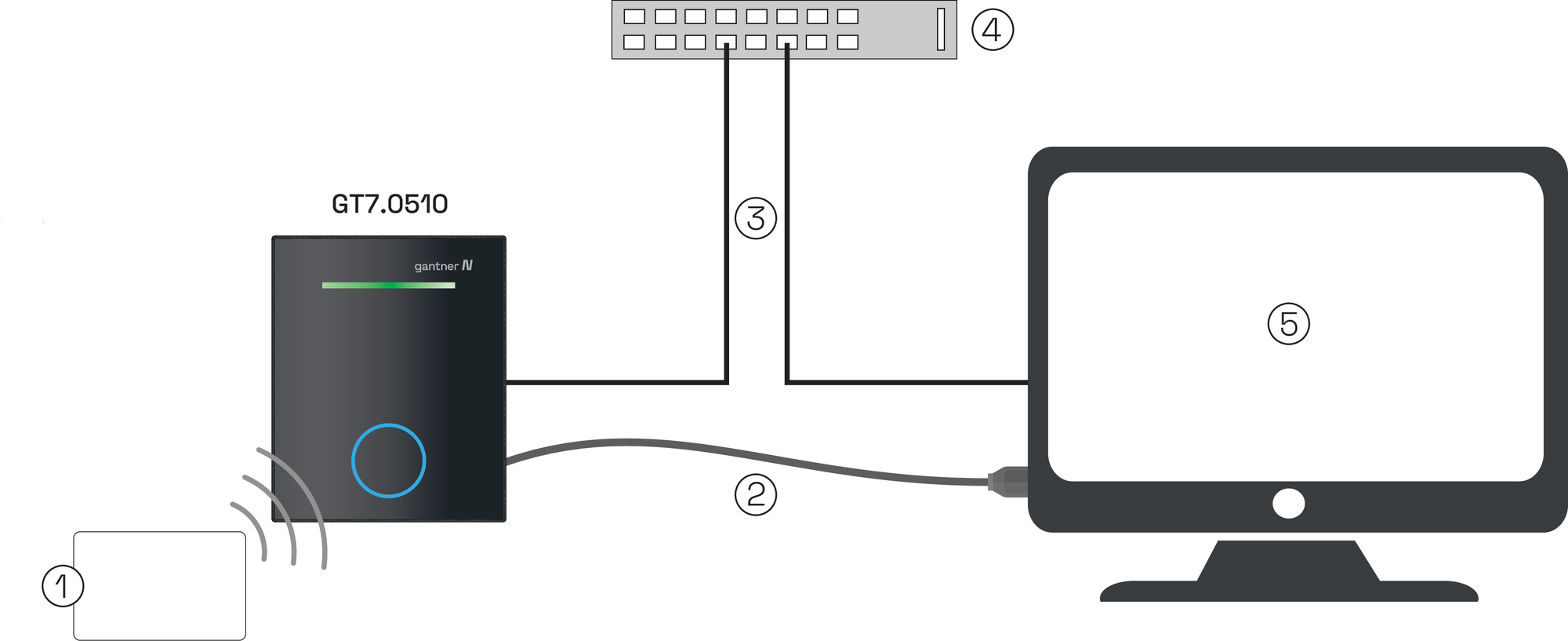

Figure 1. Typical application of the GT7.0510
RFID data carrier
USB (HID interface)
Network
Network switch
Computer with Gantner software

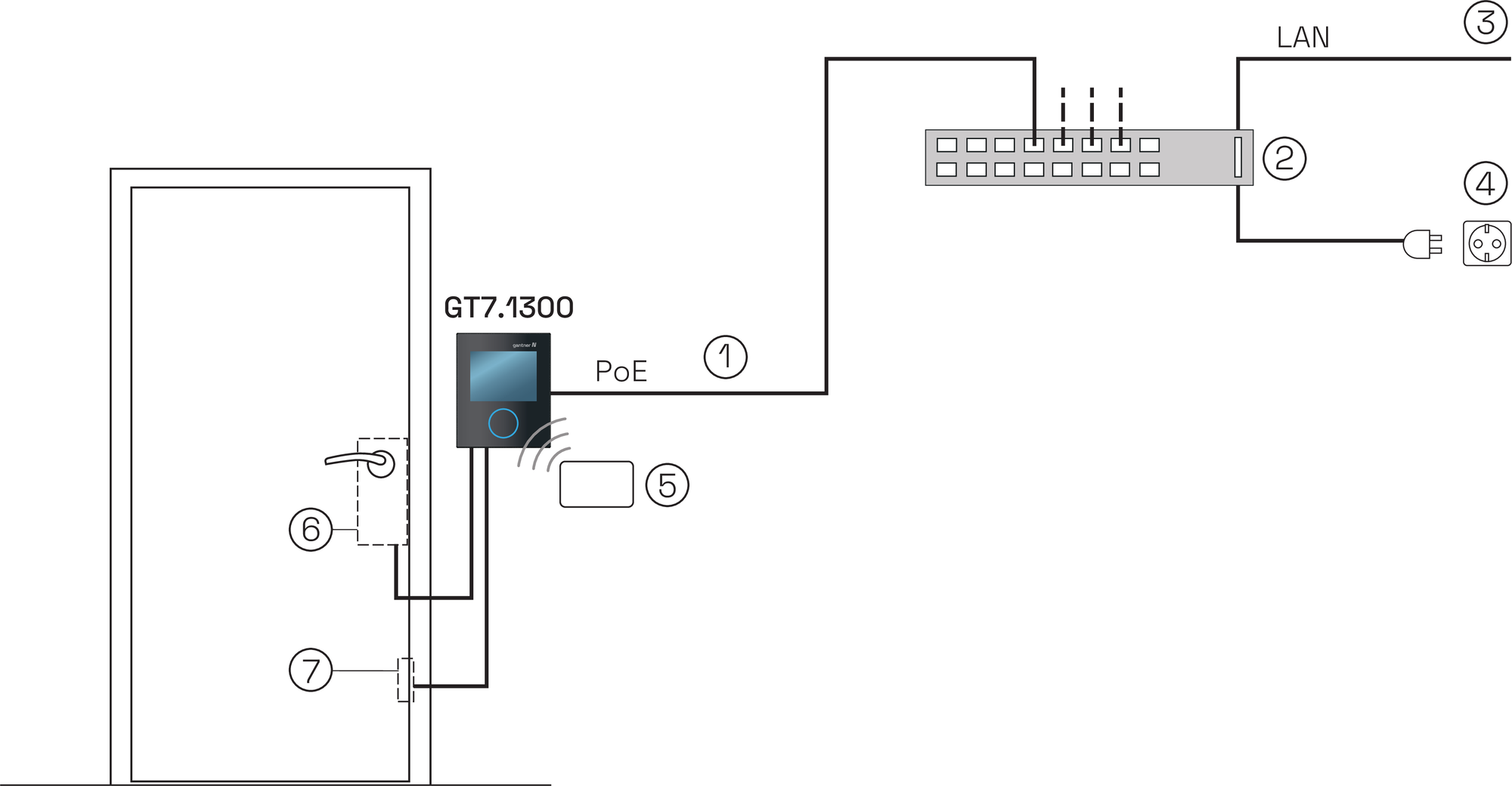

Figure 2. Typical application of the GT7.0500 or GT7.1300
Connection to network and power supply (PoE)
Network switch with PoE injection
Network
Power supply for network switch
RFID data carrier
Electronic door lock
Door status feedback
