GT7.3x27

To facilitate the installation of the GT7.3x27, Gantner provides a range of tubular holders designed to suit different installation requirements. For all holders, the electrical cabling is designed to be fed through the pole to connect to the terminal, which provides a neat cable-free appearance.

The following GAT Holder 6xx0 holders with a Ø 30 mm tube are suitable for the GT7.3x27.

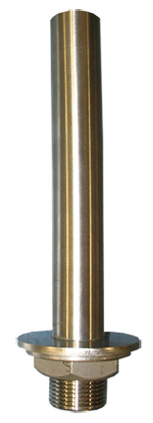

GAT Holder 6010 L - Part No. 142019

Stainless steel holder used to install the terminal on top of a turnstile, gate or desk. The holder has a 210 mm pole height from the mounting surface to the bottom of the terminal. The GAT Holder L has a 1-inch thread and requires a drill hole of min. Ø 35 mm in the mounting platform to allow installation.

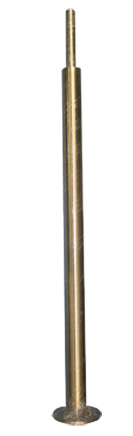

GAT Holder 6020 - Part No. 767083

Stainless steel holder used to install the terminal onto the floor. The holder has a 1209 mm pole height from the mounting surface to the bottom of the terminal. Three mounting holes in the base of the holder provide a secure anchoring point.

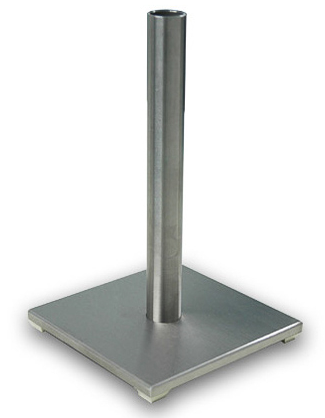

GAT Holder 6080 - Part No. 430621

Stainless steel holder used to place the terminal onto a table or desk. No installation is required but a hole can be drilled in the surface where the terminal will sit for the connection cables. Alternatively, the cables can simply run under the base of the holder and lie on the desk.

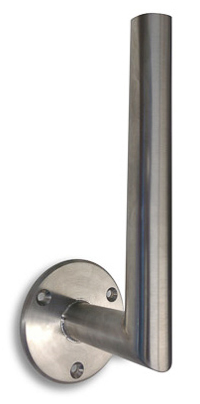

GAT Holder 6090 - Part No. 640422

Stainless steel holder used to mount the terminal onto a wall. The holder has a 260 mm pole height to the bottom of the terminal. Three mounting holes in the wall plate of the holder provide a secure anchoring point.

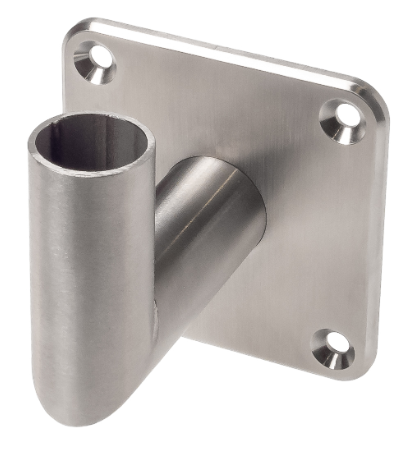

GAT Holder 6120 - Part No. 1114703

Stainless steel holder used to mount the terminal onto a wall. In comparison to the GAT Holder 6090, this holder has a shorter pole height of approx. 62 mm to the bottom of the terminal. Four mounting holes provide a secure anchoring point.
