GT7.3x27

4.4.1. Power via power supply

The GT7.3x27 requires a power supply between DC 12 and 24 V that complies with SELV (Safety Extra-Low Voltage) and LPS (Limited Power Source). The voltage input is protected against reverse polarity.

Gantner offers the following power supplies:

  • GPS7.3092 0.7A-1 (Part No. 1108279): 0.75 A plug-in power supply with country adapter for EU, UK, USA, Australia.

    Output: 24 V DC/0.75 A with open ends. Input: 100-240 V AC, 50/60 Hz

  • GPS7.1002 1.5A (Part No. 1100872): 1.5 A power supply. Country specific mains cable ordered separately (GAT NET.Power Cord). Output: 24 V DC/1.5 A max., input: 100-240 V AC, 50/60 Hz

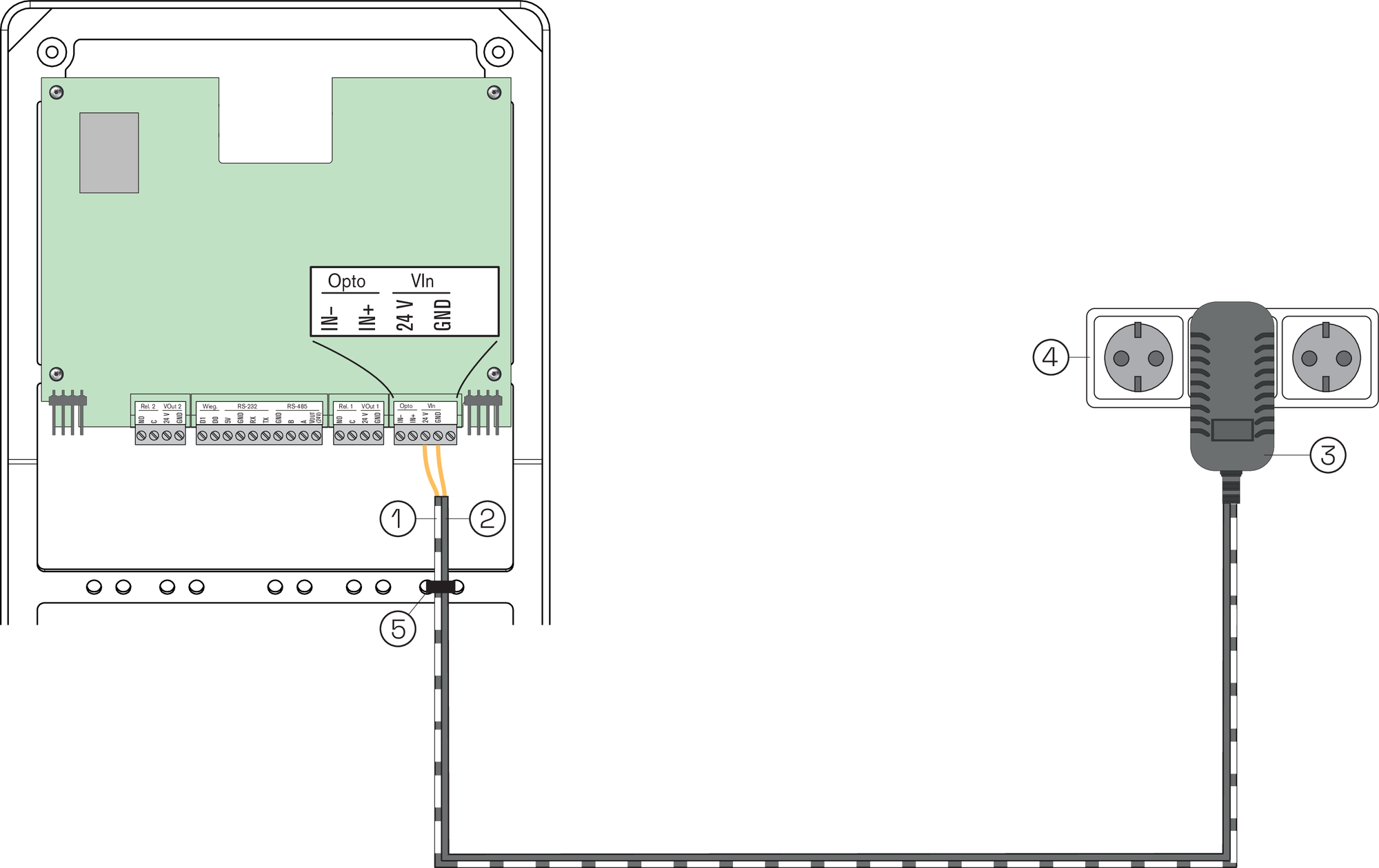

Figure 7. Power via power supply
Power via power supply

  1. 24 V wire

  2. Ground wire

  3. Power supply (GPS7.3092 0.7A-1)

  4. Power outlet

  5. Cable tie



Complete the following steps:

  1. Connect the 24V wire (1) and GND wire (2) of the power supply cable to the VIn screw terminals of the terminal as shown in the figure above.

  2. Secure the wire to the terminal housing using a cable tie (5).

  3. Plug the power supply (3) into the electrical outlet (4).
