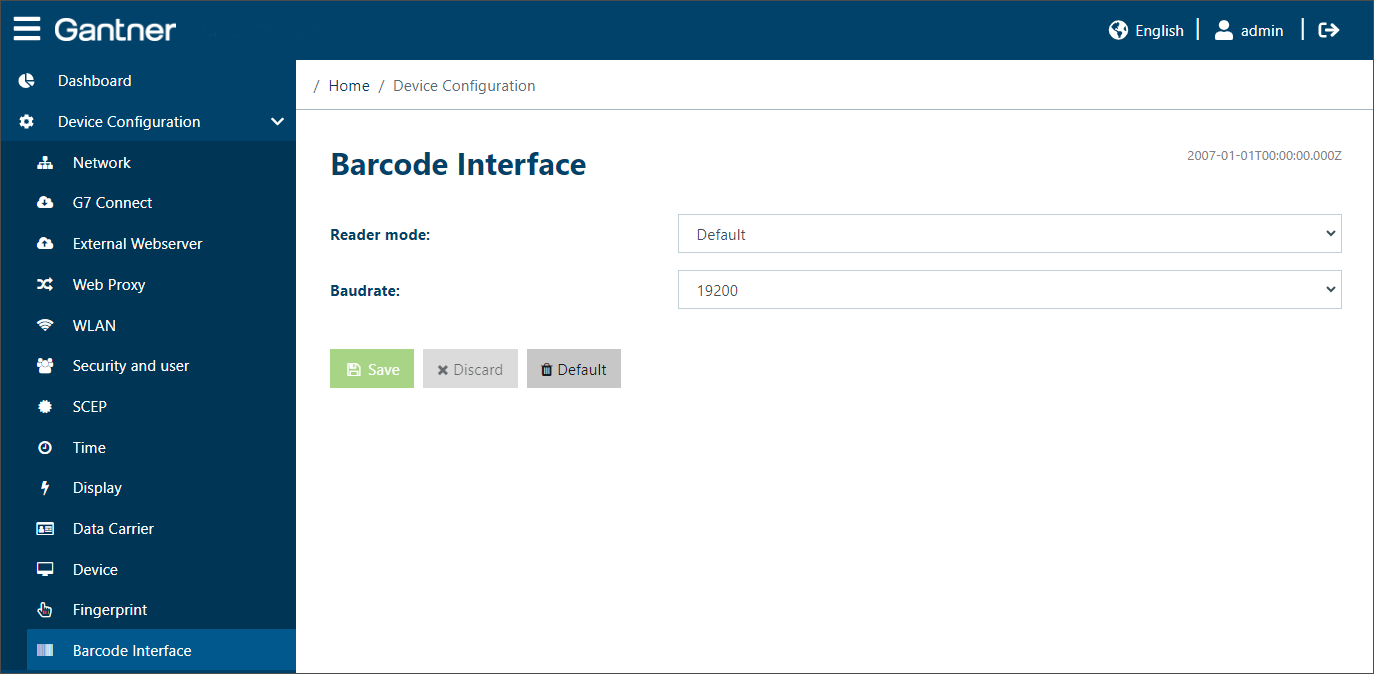

5.4.14. Barcode interface
These settings are relevant when a barcode reader is being used with the GT7.3x27.
Reader mode: Select the type of reader or interface from the menu.
Default: General/undefined barcode reader.
ATR110/ATR200 – Signals reader controlled: For the ATR 110 and ATR 200 barcode readers from Gantner. With this setting, the signaling on the barcode reader is automatically set as soon as a barcode is read.
ATR110/ATR200 – Signals host controlled: For the ATR 110 and ATR 200 barcode readers from Gantner. With this setting, the signaling on the barcode reader is not set until the approval or rejection is made by the management software.
GBS7.1xxx – Signals reader controlled: For the GBS7.1xxx barcode readers from Gantner. With this setting, the signaling on the barcode reader is automatically set as soon as a barcode is read.
GBS7.1xxx – Signals host controlled: For the GBS7.1xxx barcode readers from Gantner. With this setting, the signaling on the barcode reader is not set until the approval or rejection is made by the management software.
GBS7.1xxx - Signals host controlled, USB: For the GBS7.1xxx barcode readers from Gantner, which are connected via USB. With this setting the signaling on the barcode reader is not set until the approval or rejection is made by the management software.
Baud rate: The transmission rate of the barcode reader.
Reader watchdog: If an ATR 110 or ATR 200 reader is used, a relay output of the device can be used to interrupt or restore the power supply to the barcode reader. To do this, enable the Relay option and enter the desired relay number. The option Internal 5V switch can be activated to switch the supply of the barcode reader.
Enable beeper: If a barcode reader of type GBS7.1xxx with signals host controlled is used, the beeper of the barcode reader can be activated or deactivated.
