3.3. Opening / closing the housing
The rear housing part of the GT7.3x27 must be opened to install the tubular holder and complete the electrical connections.

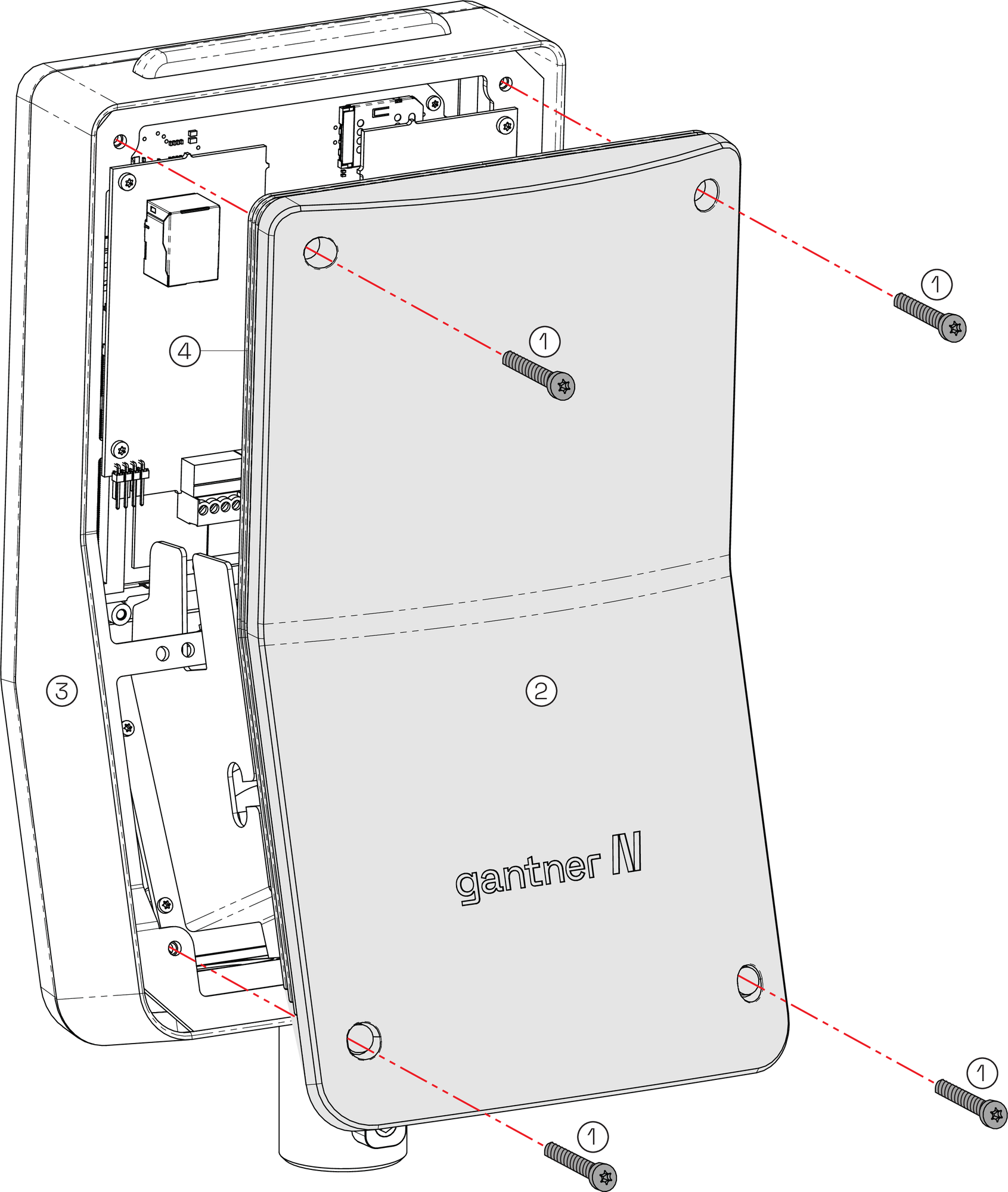

Figure 4. Opening / closing the housing
 |
Housing screw
Rear part
Middle part
Housing seal
To open the housing:
Unscrew and remove the four housing screws (1) on the rear part while firmly holding the front part of the terminal.
Hold each side of the rear part (2) and remove it from the middle part (3).
To close the housing:
Insert the rear part (2) carefully into the middle part (3). Take care to ensure that the housing seal (4) is correctly inserted the middle part and not damaged during this process.
Secure the rear part using the four housing screws (1).
