GT7.3x27

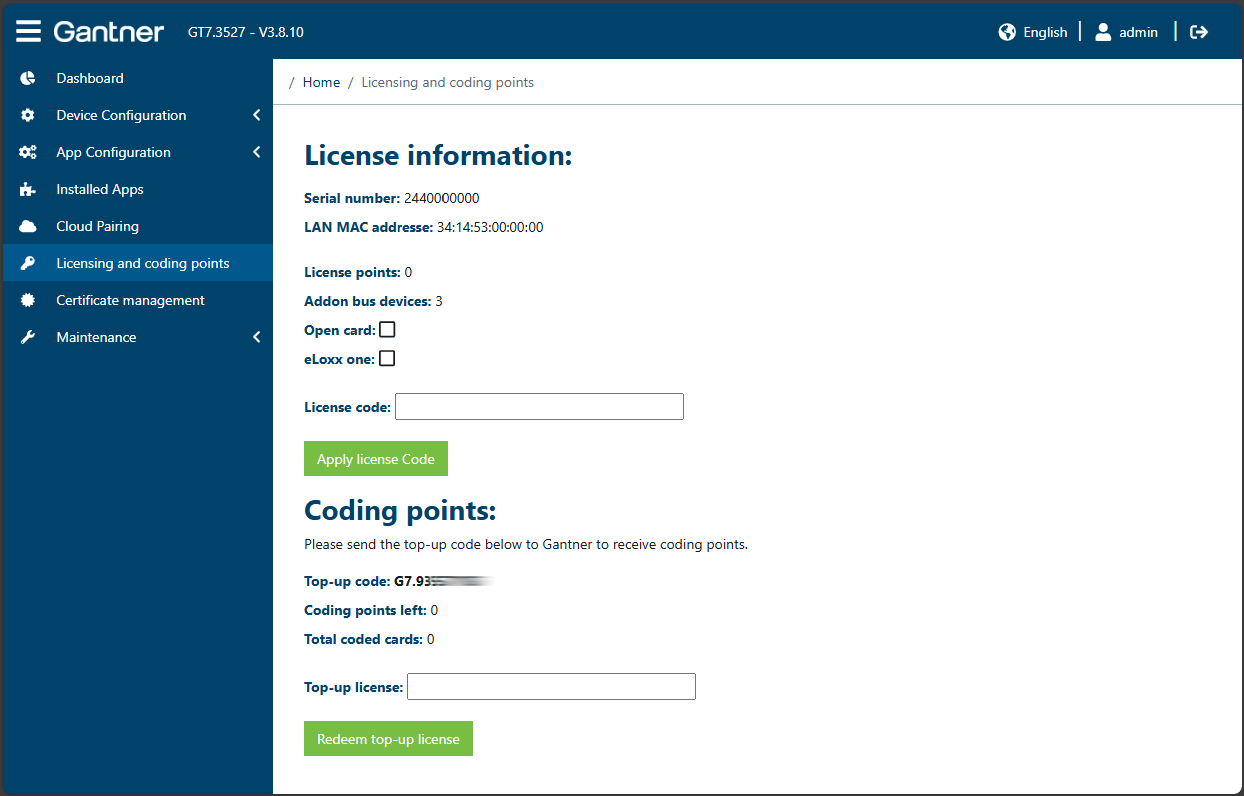

On this page, the network and license information for the GT7.3x27 are displayed and you can also add new license points here. The coding points that are used to encode data carriers using the corresponding G7 app can also be added.

Serial number: The serial number of the GT7.3x27.

LAN MAC address: Unique, internal network address of the GT7.3x27.

License points: License points are required to activate certain G7 apps and enable other features. License points can be purchased from Gantner. The available license points are displayed here.

Addon bus devices: The maximum number of devices (controller and I/O extensions) that can be connected to the expansion bus of the device.

Open card: A tick in this field indicates that the Open Card license has been enabled and the certificate check is disabled, i.e., data carriers that were not coded by Gantner can also be used.

eLoxx one: This option is only relevant for the G7 Main Controller App. If the license for the eLoxx One software has been activated, this field is marked with a tick. eLoxx One can then be started via the Dashboard.

License code: Here you can enter a license code for the installation of additional apps or to activate additional functions can be entered here.

Top-up code: You can use this code to request the desired number of coding points from Gantner Electronic GmbH.

Coding points left: Here you can see how many coding points are currently still available in the terminal. As soon as you add new coding points using a top-up license, the new coding points are added here.

Total coded cards: The number of data carriers already encoded is displayed here.

Top-up license: If you request coding points from Gantner using a top-up code, you will receive a license code that you enter here. You can activate the coding points by clicking on Redeem top-up license. These are then added to the Coding points left counter.
