GT7.3x27

The following figure provides an example of how the GT7.3x27 typically operates with the other components in the system.

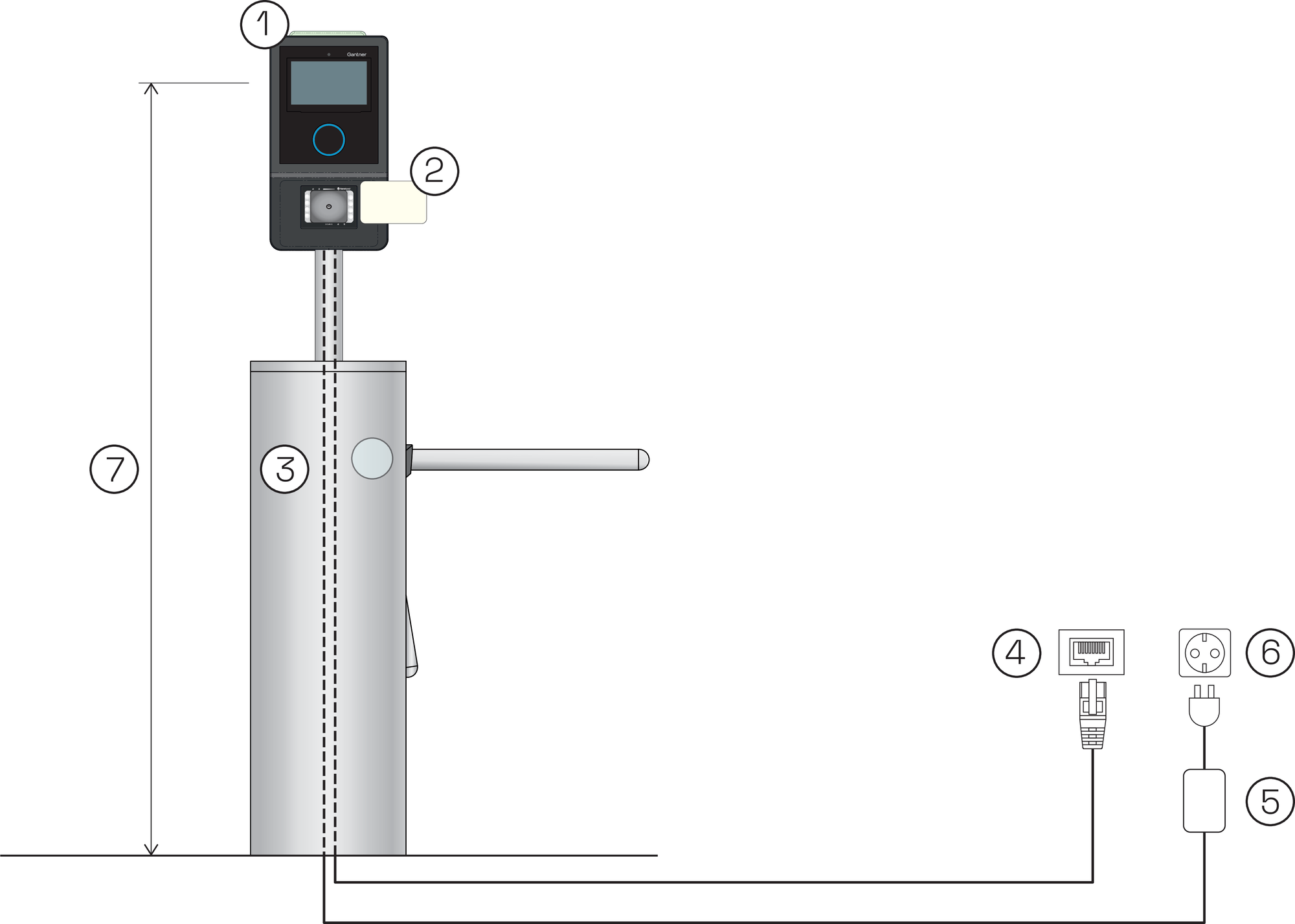

Figure 1. Typical application of the GT7.3x27 terminal

1. GT7.3x27

2. Credential/ticket

3. Turnstile

4. Network

5. Power supply

6. Power outlet

7. Recommended height = 1.3 m
