GT7.3x27

2.7. Device features and dimensions

Note

All measurements are in millimeters.

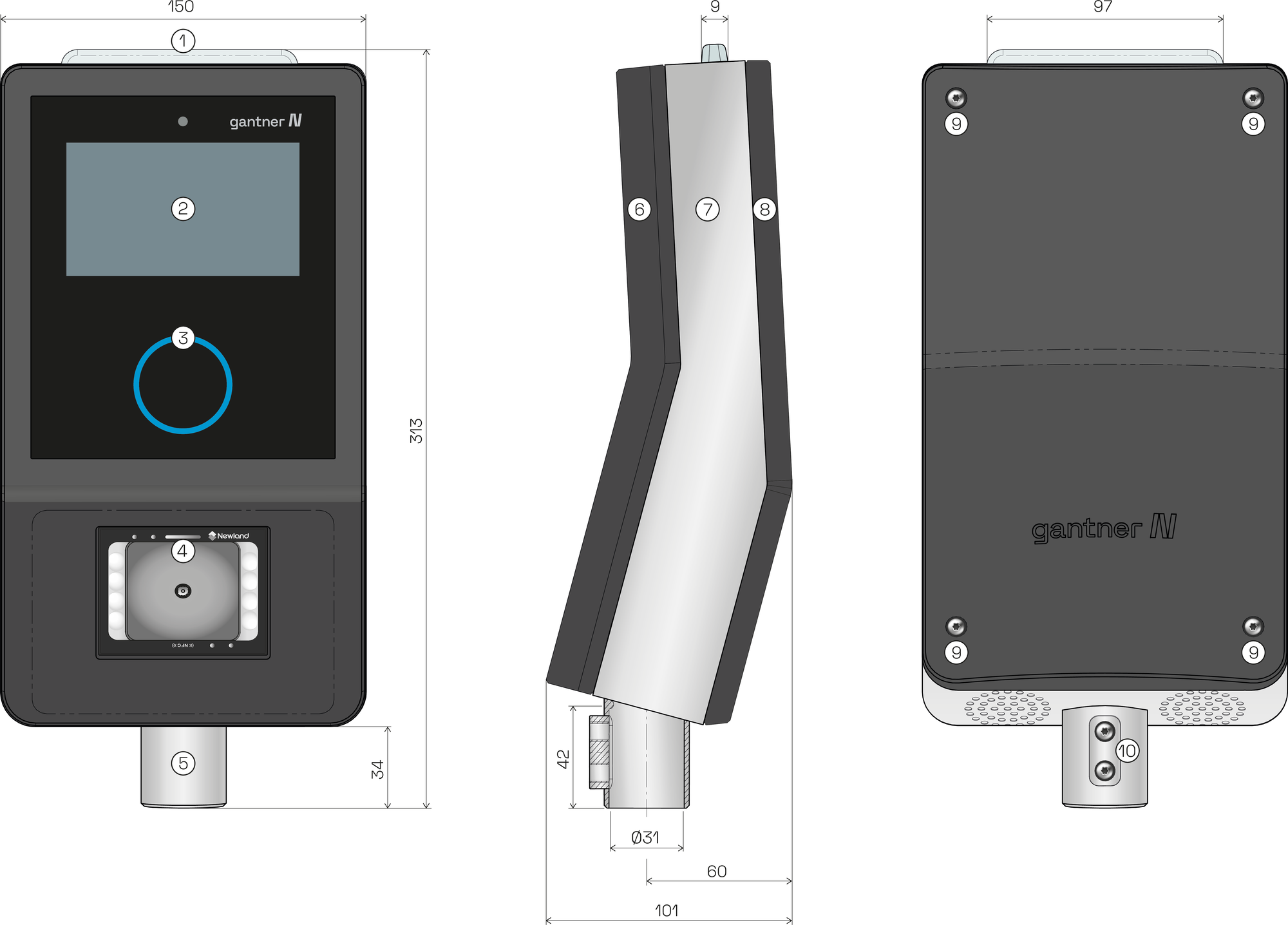

Figure 2. Features and dimensions of the GT7.3x27
Features and dimensions of the GT7.3x27

  1. LED status display

  2. Touchscreen

  3. RFID reader with LED

  4. Barcode reader

  5. Tube holder

  6. Rear part

  7. Middle part

  8. Front part

  9. Housing screws for rear part

  10. Fixing screws for tube holder
