5.9. Adding and deleting master cards

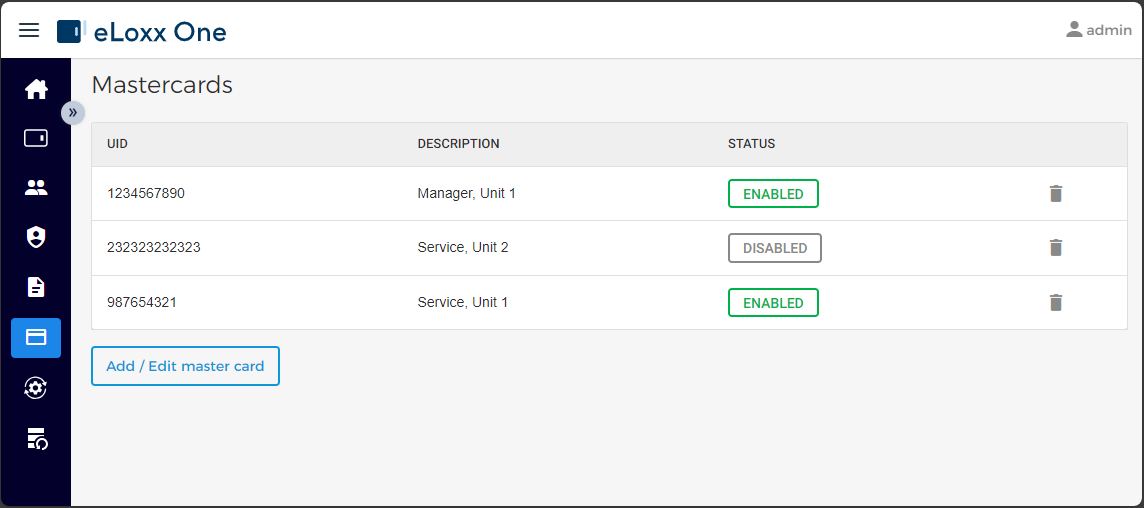

  1. Open the Mastercards page.

    ↪ All defined master cards are displayed.

  2. Click on the Add / Edit master card button.

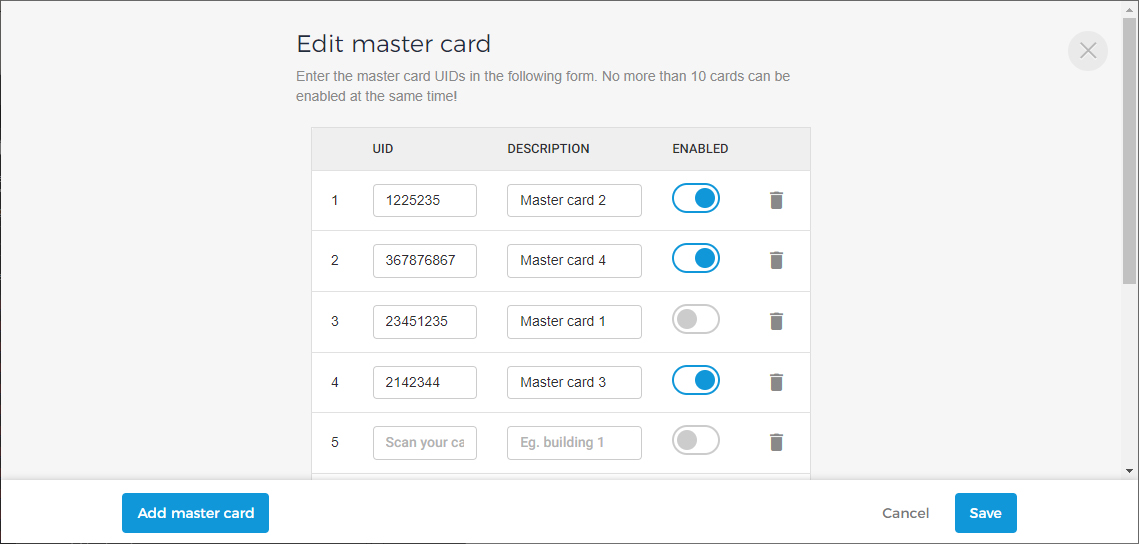

    ↪ The following window is displayed.

  3. Enter the UID number (in decimal format) of the master cards and a description (if desired) for each card into the respective fields.

    Note: The UID number can be copied from the Logs page if the data carrier was previously read.

  4. Enable or disable the master cards for use via the ENABLED switch.

    Note: No more than 10 master cards can be enabled at the same time! You can however add more than 10 card numbers via the Add master card button.

  5. To delete a master card, click on the trash can icon.

  6. Click on Save to finalize the master card information.
