2.2. System Overview
eLoxx one operates in combination with GANTNER hardware components to provide a complete electronic locker system. The following figure shows the basic structure of the system.
Notice
This manual describes the operation of the eLoxx one application. Separate manuals are available for other components (dark gray) that comprise the system.

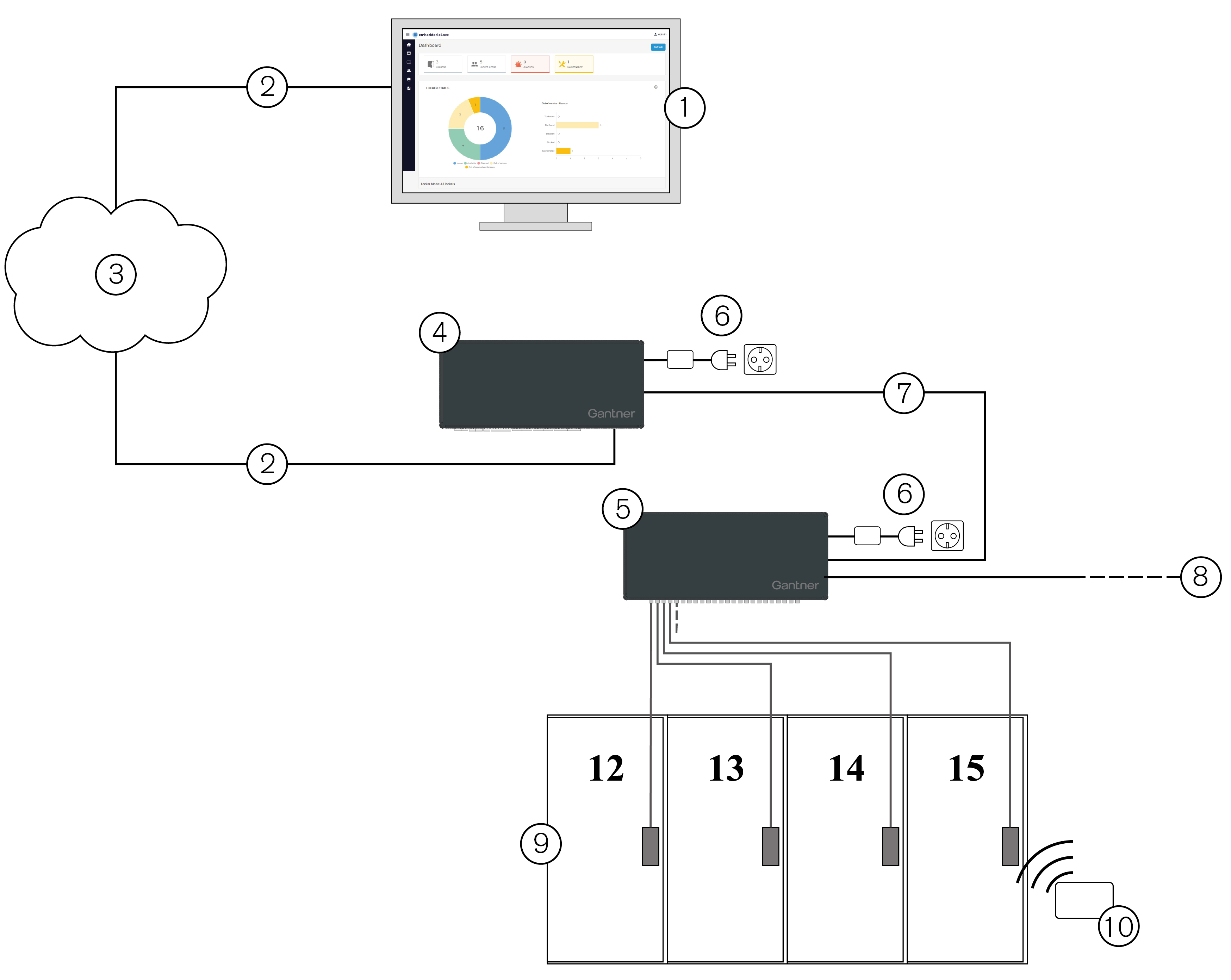

Figure 1. Locker locking system with eLoxx one
1 ... Web browser with eLoxx one
2 ... Network connection
3 ... Connection to Internet (optional) and local network
4 ... GC7 controller with G7 Main Controller App
5 ... GANTNER sub controller
6 ... Power supply
7 ... RS-485 connection
8 ... RS-485 connection to additional GANTNER sub controllers
9 ... Lockers with GANTNER electronic locks
10 ... User identification via RFID data carrier
